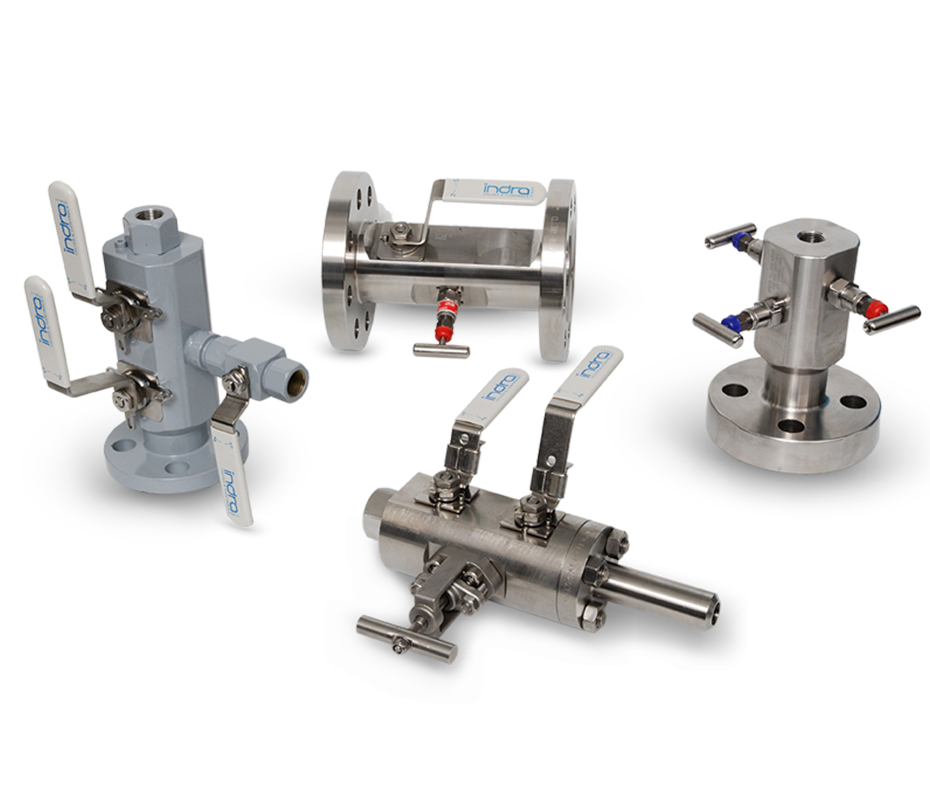

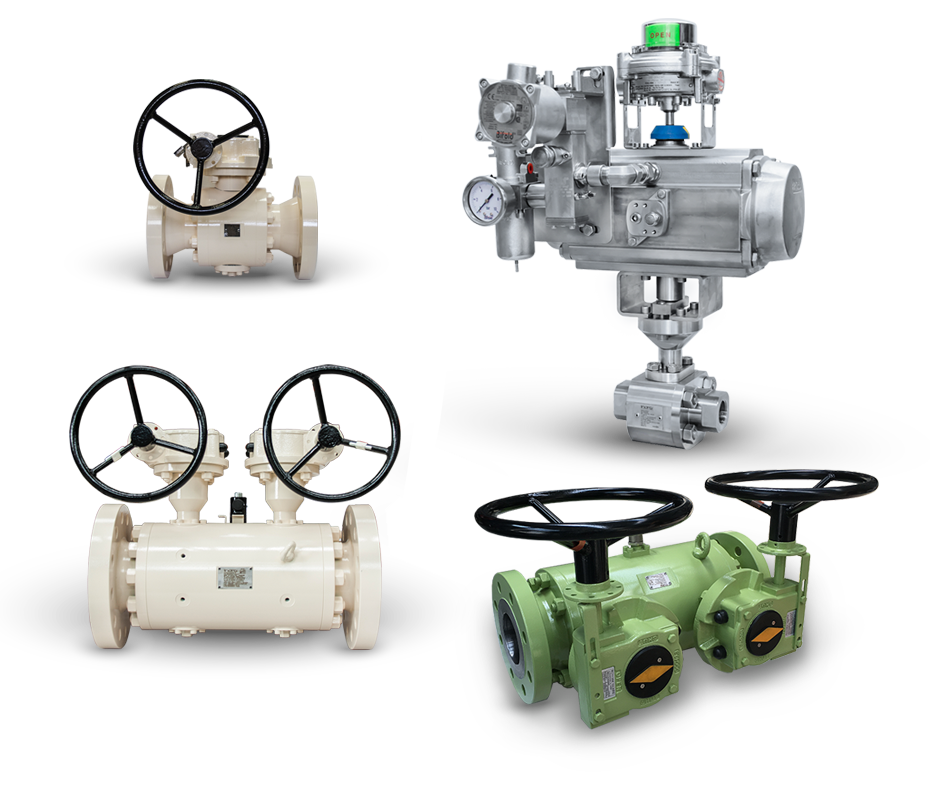

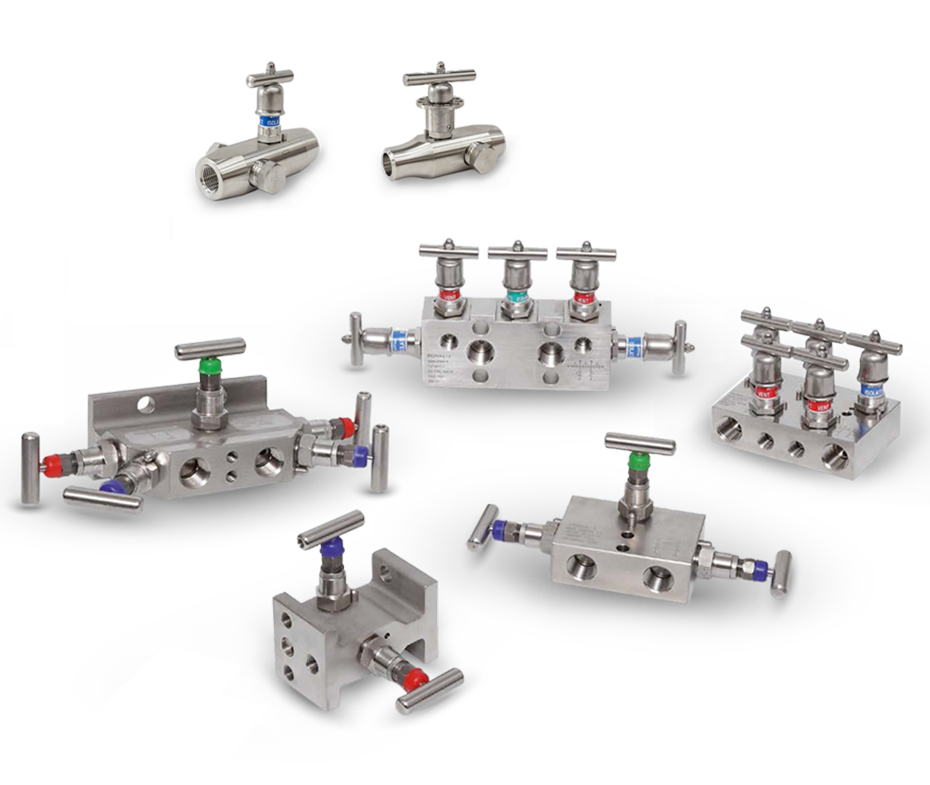

Ball & DBB split body floating, trunnion & actuated valves / Integral one piece floating ball & DBB valves / Instrumentation valves & manifolds
Founded in 1987, Indra Srl is nowadays at the forefront in the design and manufacture of ball and needle valves in various configurations and diameters, from integral double block & bleed and split body versions to manifold for instrumentation, produced according to the most stringent quality standards of safety and efficiency.
made in Italy
ASME Class - 150Ib to 2500Ib
API 3000 / 5000 / 10000 / 15000
Size - 1/2" to 8" (FB & RB)
Soft Seated & Metal Seated
Lever, Gearbox or Actuated
Temperature range -46°C to +240°C
Special HT versions up to 500°C
Cryogenic versions
| Download | Datasheet |
Connections
From 1/2" to 2"
Threaded, Flanged, Weld, Hub
Rating
ASME Class - 150Ib to 2500Ib
APl 3000 / 5000 / 10000 / 15000
Design
Single or Double Block and Bleed (SB-SBB-DB-DBB)
Integral ball design: Soft & Metal Seat
Bonnet
Screwed / O.S. & Y. Bolted / Antitamper / Extended locking device / Cryogenic service
| Download | Datasheet |
Connections
From 1/2" to 2"
NPT, BSPP, BSPT, BW, SW
Rating
6000 / 10000 / 15000* PSI (threaded types)
SCH. 40, 80, 160, XXS (BW-SW version)
Bonnet
Screwed / O.S. & Y. Bolted / Antitamper / Extended locking device / Cryogenic service
| Download | Datasheet |
Connections
Inlet: 1/2"' to 4" flanged
Outlet: threaded & flanged
Rating
ASME Class - 150lb to 2500Ib
APl 3000 / 5000 / 10000 / 15000
Bonnet
Screwed / O.S. & Y. Bolted / Antitamper / Extended locking device / Cryogenic service
| Download | Datasheet |
